1988-2019 C4/C6/C7 Corvette 18x8.5 Gloss Black C8 Z06 Style Replica Wheel (Front Only on C6-C7) - Not for C6/C7 Z06, Grand Sport, ZR1 or C7 Z51 - CV03C
✅ Fits:
- 1988–1996 C4 Corvette — front or rear on base and special-edition C4s; front only on the 1990–1995 ZR-1 and 1996 Grand Sport
- 2005–2013 C6 Corvette — front only — Base / Z51 (coupe and convertible)
- 2014–2019 C7 Corvette — front only — Stingray without the Z51 package
❌ Does not fit:
- C6: 2006–2013 Z06, 2010–2013 Grand Sport, 2009–2013 ZR1
- C7: Stingray with Z51 package, 2015–2019 Z06, 2017–2019 Grand Sport, 2019 ZR1
Style only: “C8 Z06 Style” describes how this wheel looks — it copies the design of the 2023+ C8 Z06 factory wheel. It does not describe the wheel's size. This wheel is sized to fit only the Corvettes listed above. It is not a 2023+ C8 Z06 replacement and will not fit a 2023+ C8 Z06.
Wide-body Corvettes: C6 Z06 / Grand Sport / ZR1 and C7 Z06 / Grand Sport / ZR1 models use wider wheels and different offsets than the cars this wheel is built for. OE Wheels does not currently make a direct-fit wheel for wide-body models.
C7 Stingray with the Z51 package: Z51 cars left the factory on 19″ front / 20″ rear wheels with larger brakes. This 18″/19″ fitment is listed for Stingrays without Z51 — contact us before ordering for a Z51 car.

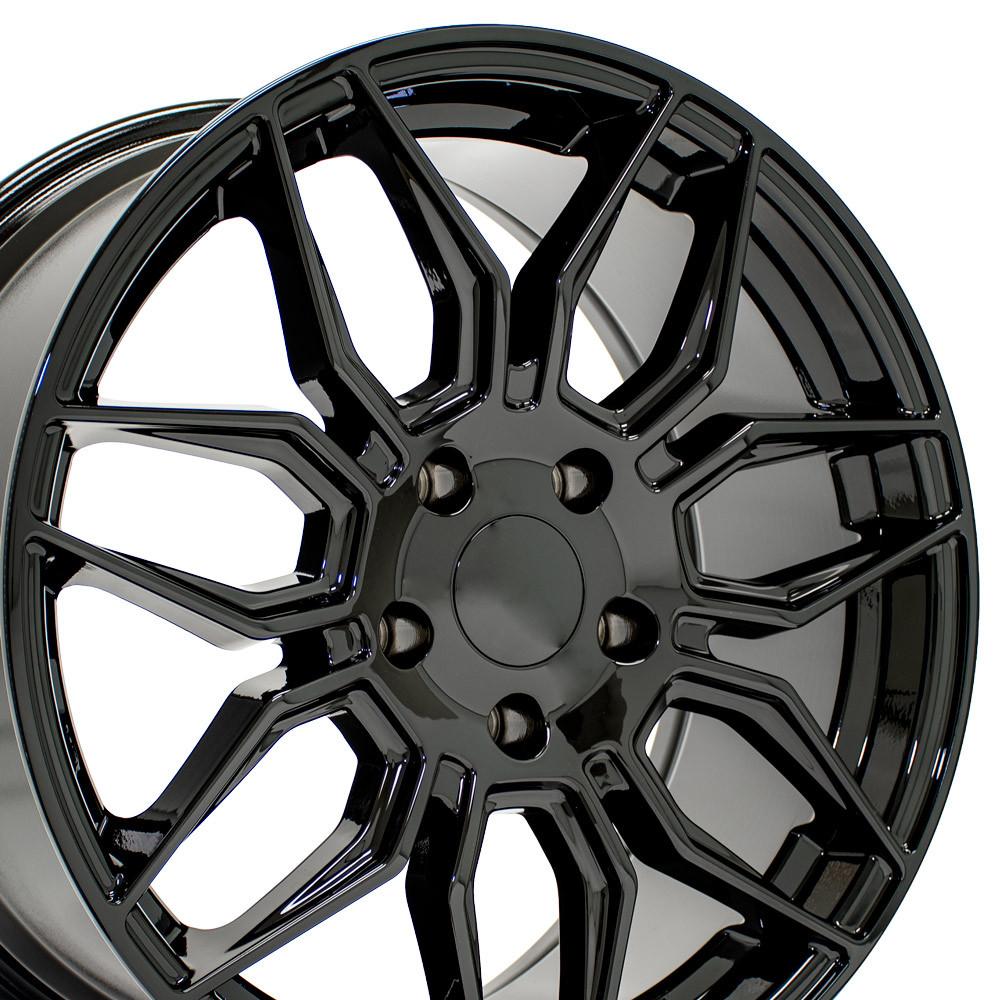

The OE Wheels CV03C recreates the look of the 2023+ C8 Z06 factory wheel. It is a one-piece aluminum alloy wheel with a powder-coated gloss black finish, built on the factory Corvette bolt pattern and center bore. Sold individually — order four for a full set (C4), or two for a pair.
Specifications
| Spec | This wheel |
|---|---|
| Part number | CV03C-18085-5475-52B |
| Wheel size | 18x8.5″ |
| Position | C4: front or rear; C6: front only; C7: front only |
| Bolt pattern | 5x120.65mm (5x4.75″) |
| Offset | +52mm |
| Backspacing | 6.80″ |
| Center bore | 70.3mm (hub-centric to factory) |
| Load rating | 1,600 lbs per wheel |
| Lug seat | 60° conical (M12x1.5 thread on this car) |
| Wheel weight | 25 lbs |
| Finish | Gloss Black (powder-coated) |
| Construction | One-piece aluminum alloy |
| Center cap | Center cap included. Your factory GM center caps will also fit. |
Compare to your factory wheels
Find your Corvette below and compare its factory wheel to this one. Backspacing is calculated the same way for every row (rim width + 1″ for the flanges, ÷ 2, plus offset), so the numbers compare directly. Your factory tire sizes are also printed on the tire placard in the driver's door jamb.
| Your Corvette | Position | Factory wheel | Offset | Backspacing | Factory tire | This wheel vs. factory |
|---|---|---|---|---|---|---|
| C4 1988 Base | Front | 16x8.5 | +50mm | 6.72″ | P255/50ZR16 | 2″ larger diameter; 0.1″ further in from the fender; 0.1″ closer to the brakes/suspension |
| C4 1988 Base | Rear | 16x8.5 | +50mm | 6.72″ | P255/50ZR16 | 2″ larger diameter; 0.1″ further in from the fender; 0.1″ closer to the brakes/suspension |
| C4 1989–1992 Base | Front | 17x9.5 | +50mm | 7.22″ | P275/40ZR17 | 1″ larger diameter; 1″ narrower; 0.6″ further in from the fender; 0.4″ further from the brakes/suspension |
| C4 1989–1992 Base | Rear | 17x9.5 | +50mm | 7.22″ | P275/40ZR17 | 1″ larger diameter; 1″ narrower; 0.6″ further in from the fender; 0.4″ further from the brakes/suspension |
| C4 1993–1996 Base | Front | 17x8.5 | +50mm | 6.72″ | P255/45ZR17 | 1″ larger diameter; 0.1″ further in from the fender; 0.1″ closer to the brakes/suspension |
| C4 1993–1996 Base | Rear | 17x9.5 | +50mm | 7.22″ | P285/40ZR17 | 1″ larger diameter; 1″ narrower; 0.6″ further in from the fender; 0.4″ further from the brakes/suspension |
| C4 1990–1995 ZR-1 & 1996 Grand Sport coupe | Front | 17x9.5 | +50mm | 7.22″ | P275/40ZR17 | 1″ larger diameter; 1″ narrower; 0.6″ further in from the fender; 0.4″ further from the brakes/suspension |
| C4 1990–1995 ZR-1 & 1996 Grand Sport coupe | Rear | 17x11 | +36mm | 7.42″ | P315/35ZR17 | Not for this rear — factory rear is 17x11 |
| C6 2005–2013 Base (incl. Z51) | Front | 18x8.5 | +56mm | 6.95″ | 245/40ZR18 | 0.2″ further out toward the fender; 0.2″ further from the brakes/suspension |
| C6 2006–2013 Z06 & 2010–2013 Grand Sport | Front | 18x9.5 | +40mm | 6.82″ | 275/35ZR18 | Does not fit — wide-body car |
| C6 2009–2013 ZR1 | Front | 19x10 | +40mm | 7.07″ | 285/30ZR19 | Does not fit — wide-body car |
| C7 2014–2019 Stingray (no Z51) | Front | 18x8.5 | +56mm | 6.95″ | 245/40ZR18 | 0.2″ further out toward the fender; 0.2″ further from the brakes/suspension |
| C7 2014–2019 Stingray Z51 | Front | 19x8.5 | +56mm | 6.95″ | 245/35ZR19 | Not listed for Z51 — larger factory brakes, 19″/20″ wheels |
| C7 2015–2019 Z06 & 2017–2019 Grand Sport | Front | 19x10 | +43mm | 7.19″ | 285/30ZR19 | Does not fit — wide-body car |
| C7 2019 ZR1 | Front | 19x10 | +42mm | 7.15″ | 285/30ZR19 | Does not fit — wide-body car |
Reference tire size for this 18x8.5 wheel: 245/40ZR18 — the size GM fitted to the factory 18x8.5 front wheel on the C6 2005–2013 Base (incl. Z51). Always confirm tire size with your installer.
Good to know
- OE Wheels guarantees fitment on stock-equipped vehicles only (factory brakes, suspension and body).
- Use 60° conical-seat lug nuts (M12x1.5).
- OE Wheels also lists this wheel for: Chevrolet Camaro 1993-2002, Pontiac Firebird 1993-2002.
- Not sure which version of Corvette you have? Send us your year, model and the tire sizes from your door-jamb placard and we will confirm fitment before you order.
